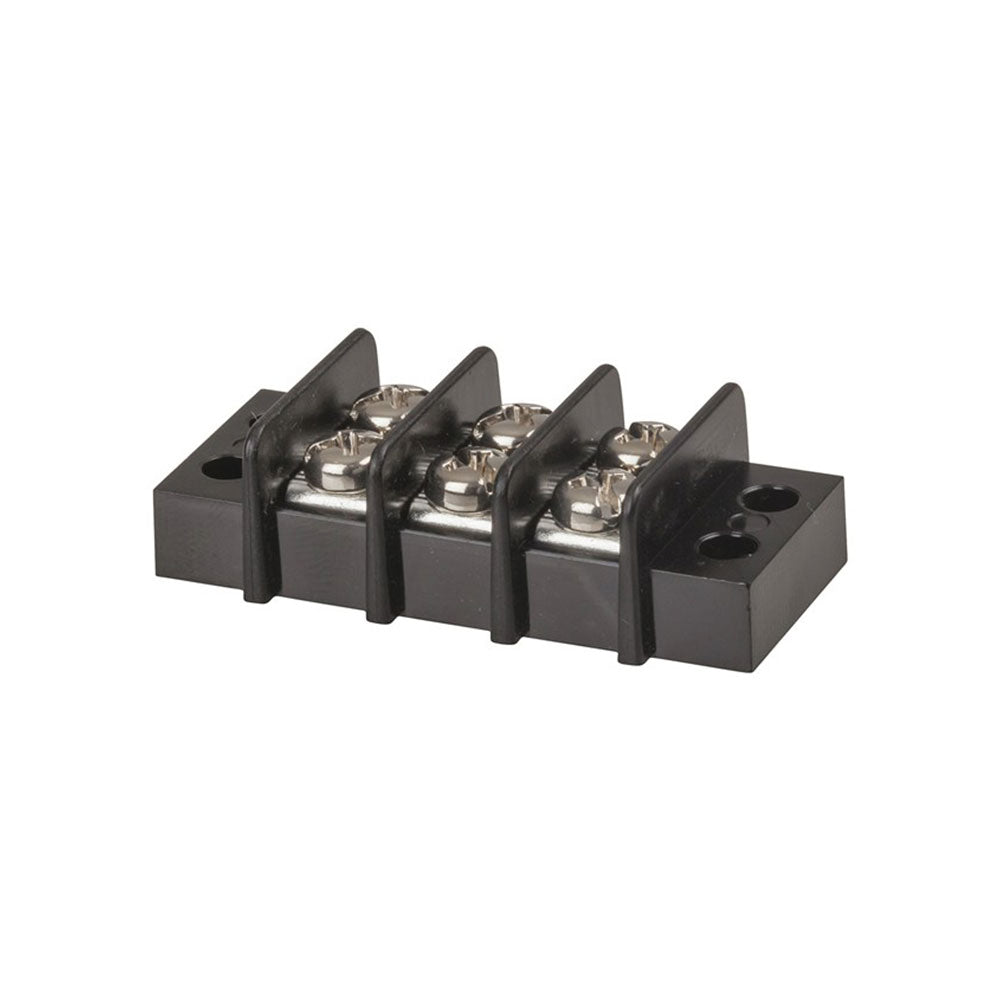

Surface Mount 3-Way Screw Terminal Strip

These units feature the ability to terminate 2 or 3 sets of wires securely with the option of changing or adding connections. In classic barrier strip fashion there is a comprehensive fence between each terminal. Each sturdy block has 2 x 4mm mounting holes at each end and a insulating body with high impact plastic.

Product Specifications

• AC current rating : 25A
• AC Voltage rating : 300V
• Mounting Method : Surface
• Packaged Volume : 0.02l
• Packaged Weight : 0.01kg
• Packaged Length : 4.6cm
• Packaged Width : 2.3cm
• Packaged Height : 1.5cm
• Type : Screw Terminal
• Device : Terminal
• Attachment Method : Screw Terminals
• Number of Contacts : 3pc
• Insulation Dielectric Voltage Rating : 2000V
• Insulation Resistance : 500MΩ
• Body Material : Plastic

• Length : 4.6 cm
• Width : 2.3 cm
• Height : 1.5 cm
