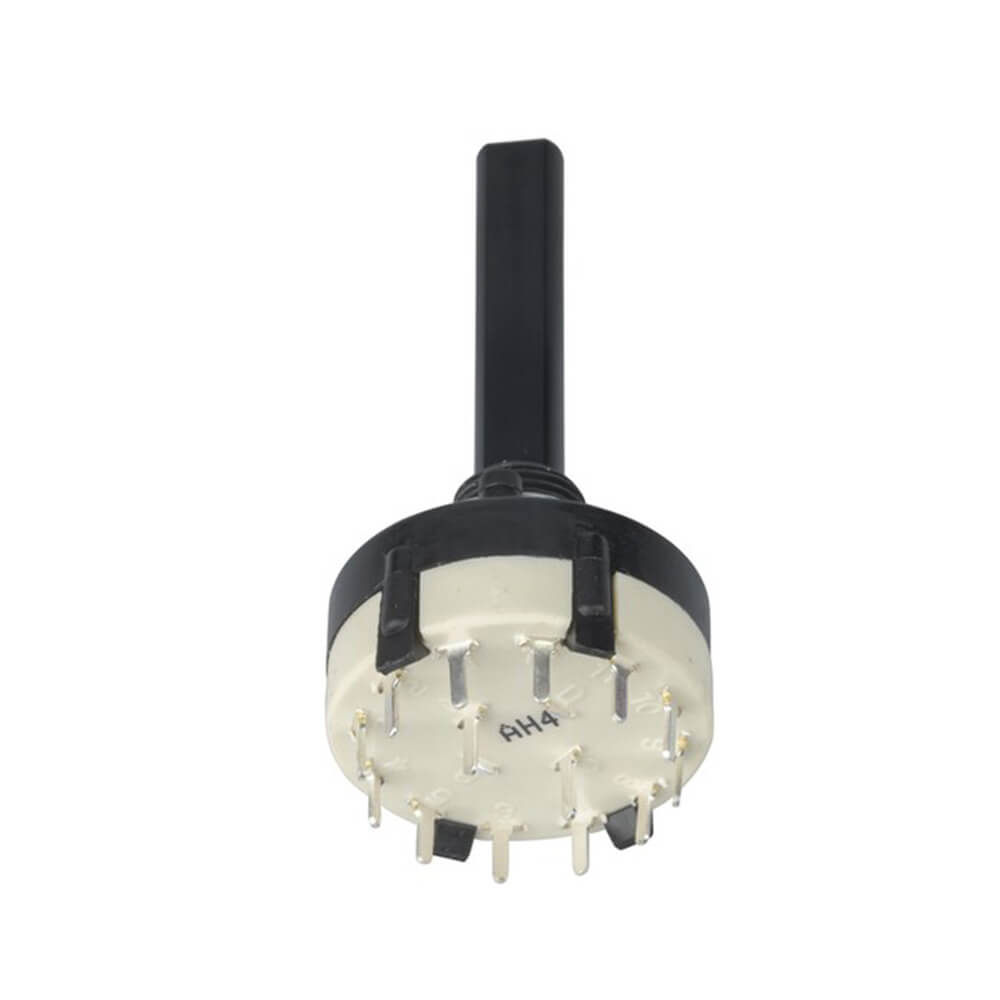

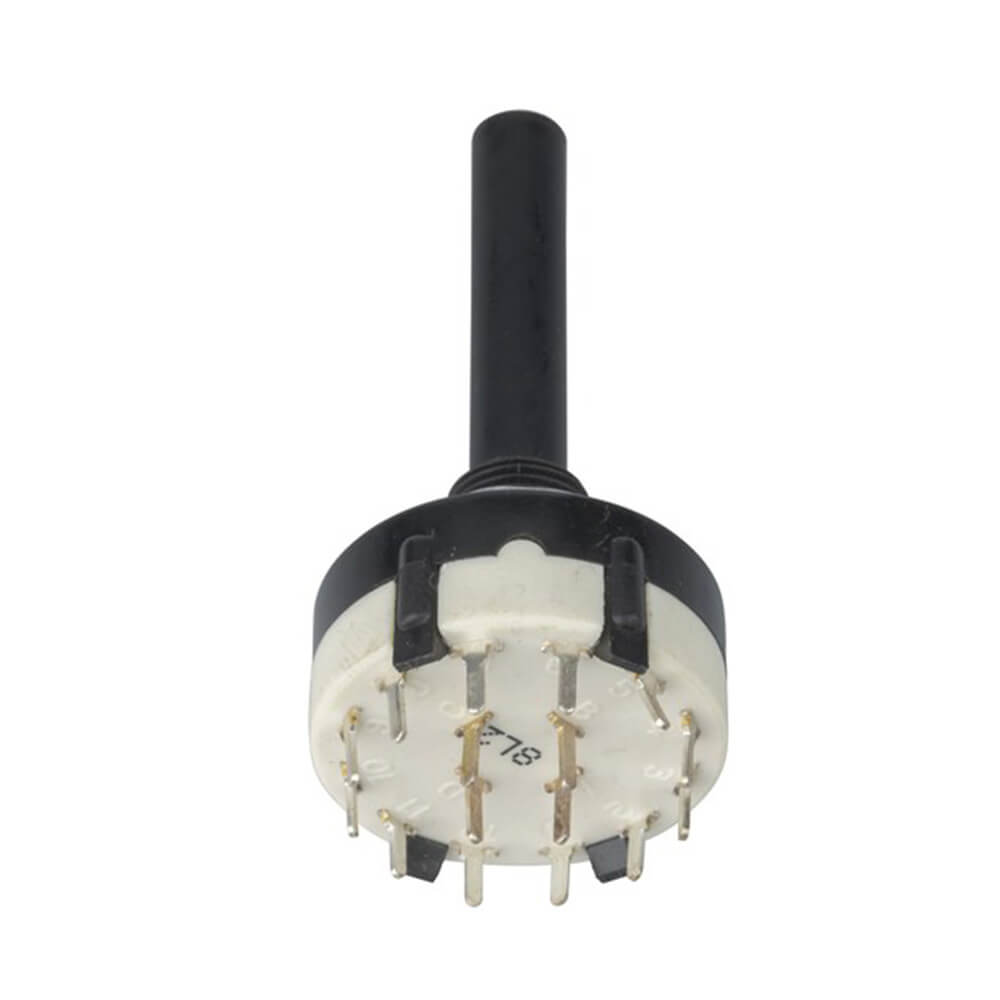

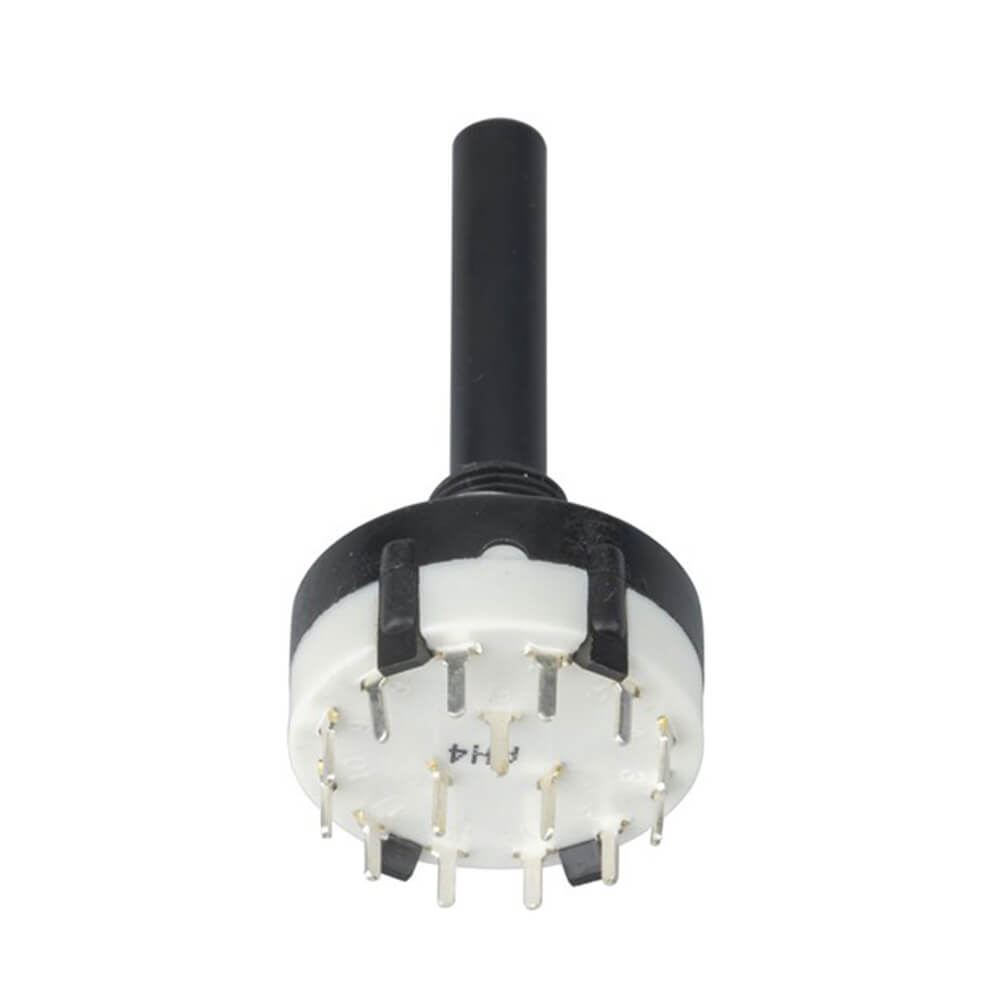

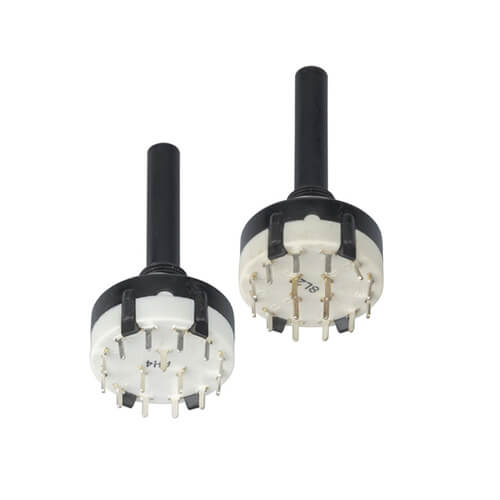

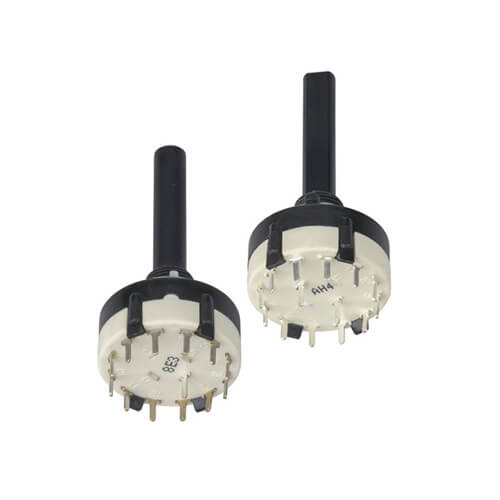

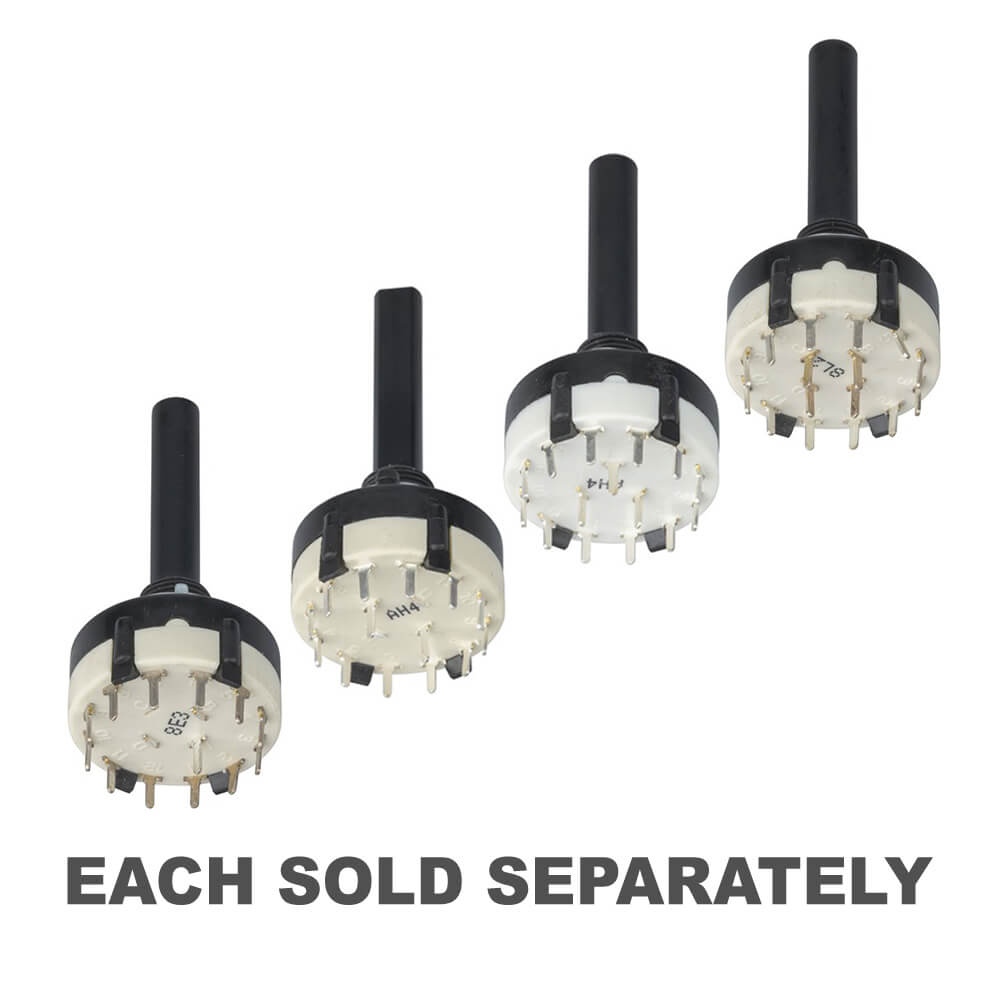

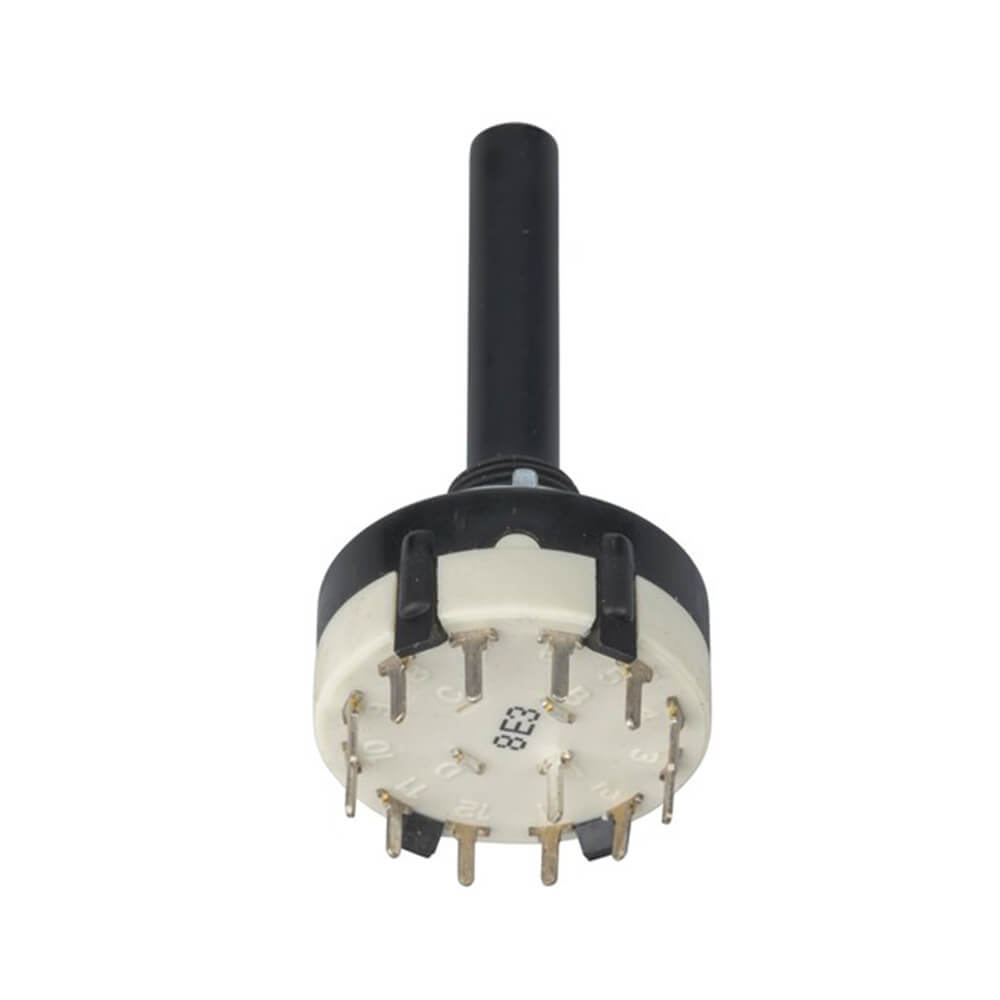

Sealed PCB Rotary Switch

These switches have a removable ring with tab which can be inserted into the switch several ways to your particular requirements. For example, if you purchased a 1 pole x 12 way (max) switch you could convert it to, say, 1 pole 7 way between stops. They have a standard 1/4 shaft. Panel hole 10mm.

1 pole 2 position through to 1 pole 12 position.

Product Specifications

• AC current rating : 150mA
• AC Voltage rating : 240V
• Mounting Method : PCB
• Attachment / Securing Method : Snap-in
• Round Mount Hole Diameter : 10mm
• Switch Type : Rotary
• Poles / Contacts : 1 pole
• Throws / Positions : 12pos
• Switch Connection : Spade Terminals
• Break/Make Function : Break Before Make (BBM)

• Length : 5.5 cm
• Width : 2.5 cm
• Height : 2.5 cm
